Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AMAX
  • Model Number: 1068C1

Packaging & Delivery

Packaging Details color box
Delivery Time 7-15days

1068C1 is a 2.4GHz 8-channel transmitter, applicable for airplane, helicopter and multi-copter. Based on the GAVIN-6C, GAVIN-8C adds the two channels and its response time achieves 2.6ms, even 8 channels it acts synchronously. Also, AA battery, Ni-MH battery and Li-Po battery all can be used in this transmitter to satisfy more customer needs.
Using the DSSS&FHSS dual spread spectrum technology,  will enhance the transmitter by increasing the anti-interference performance and transmission distance, even can controlled normally in city center, do not worry about the strong interference from high voltage lines, signal towers, city WiFi, etc.
SR86A is an 8-channel 2.4GHz receiver integrated with 6-axis gyro and suitable for normal wing, fly-wing, and V-tail airplanes. It provides four different flight modes: Gyro off, Normal, Aerobatic, and Auto-Recovery (Auto Balance) and can be programmable from the matched transmitter.

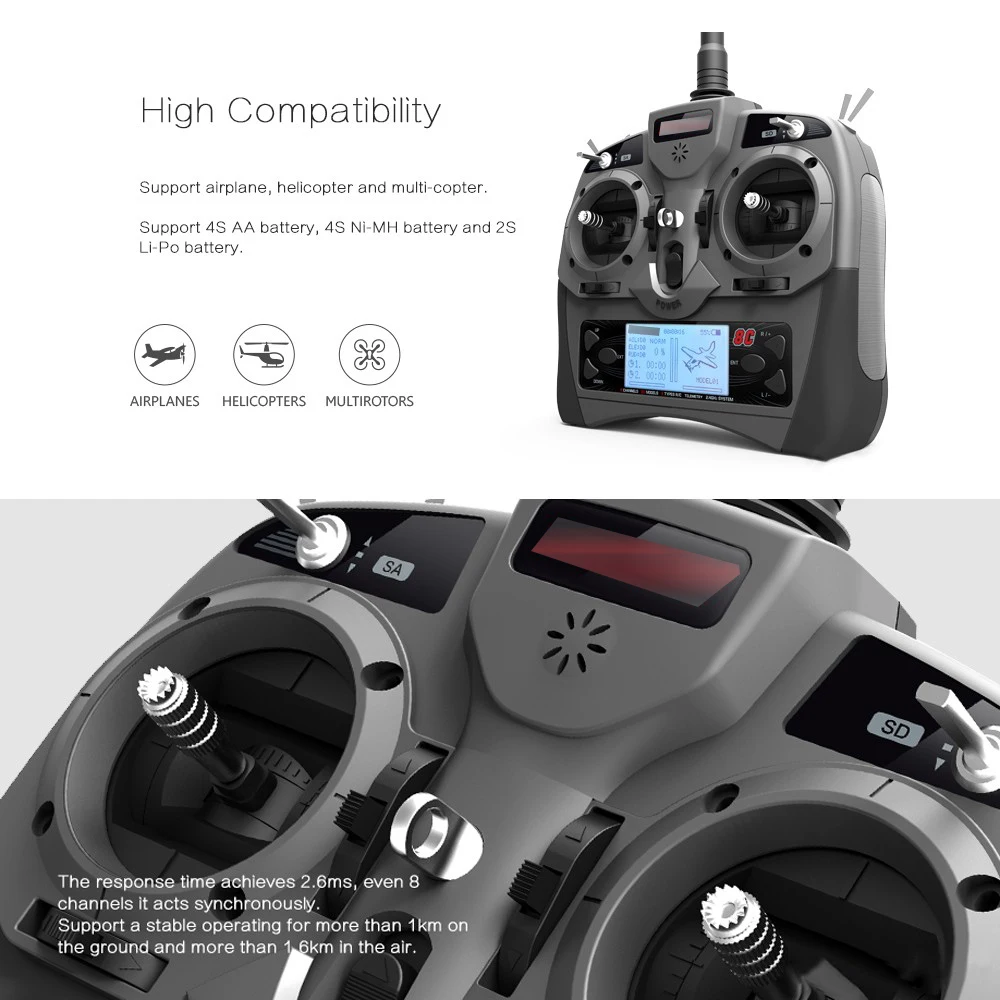

30 model memory, applicable for airplane, helicopter and multi-copter
Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technology
The R/C system has high receiving sensitivity and strong anti-interference capability, can support a stable operating for more than 1km on the ground and more than 1.6km in the air
Adopting wireless chips, with extended power amplifier (PA) and low noise amplifier (LNA) can extremely improve the system output power and receiving sensitivity
Using all-band antenna on transmitter, the transmitting efficiency is greatly improved

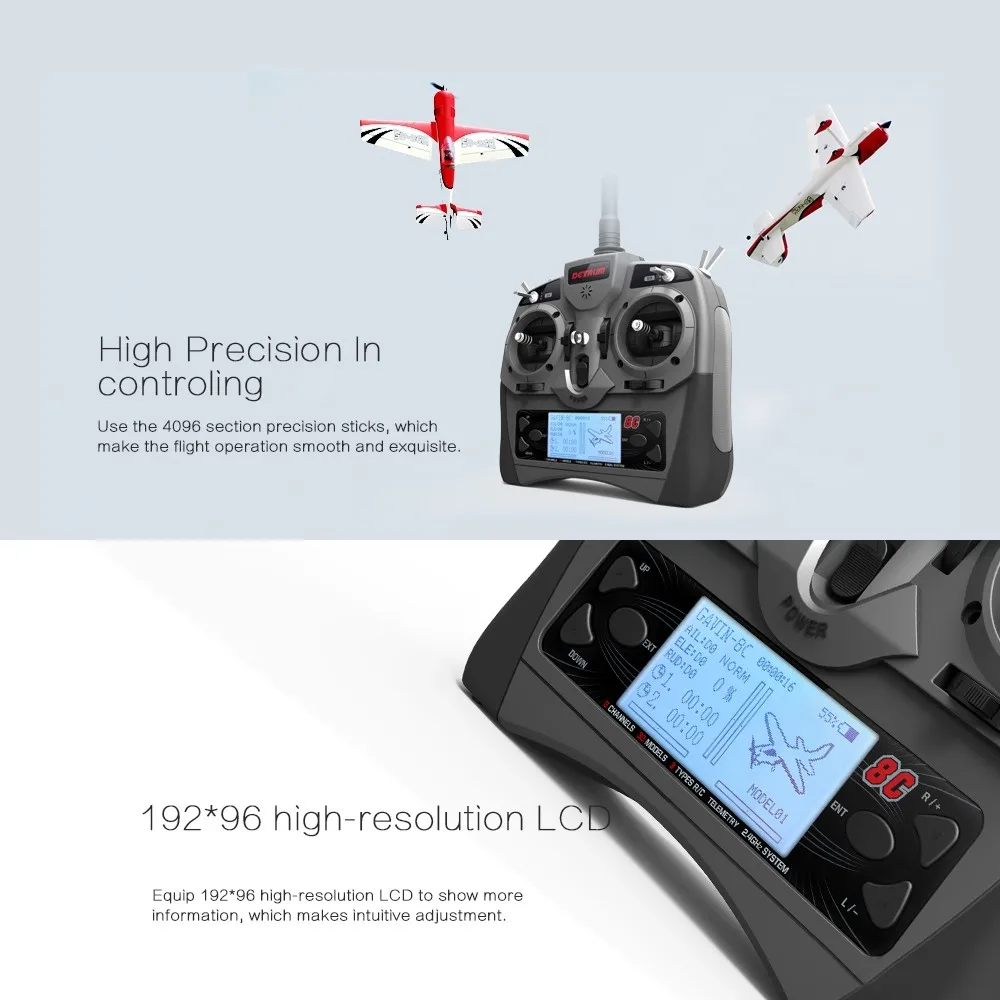

Can experience a smooth flight operation by using the 4096 section precision sticks and selecting four stick modes
Achieving 2.6ms response time, even 8 channels it acts synchronously
USB upgrade function always keeps your GAVIN-8C the latest program
Support Fail Safe function, which could predefine the servo position by transmitter when receiver out of control

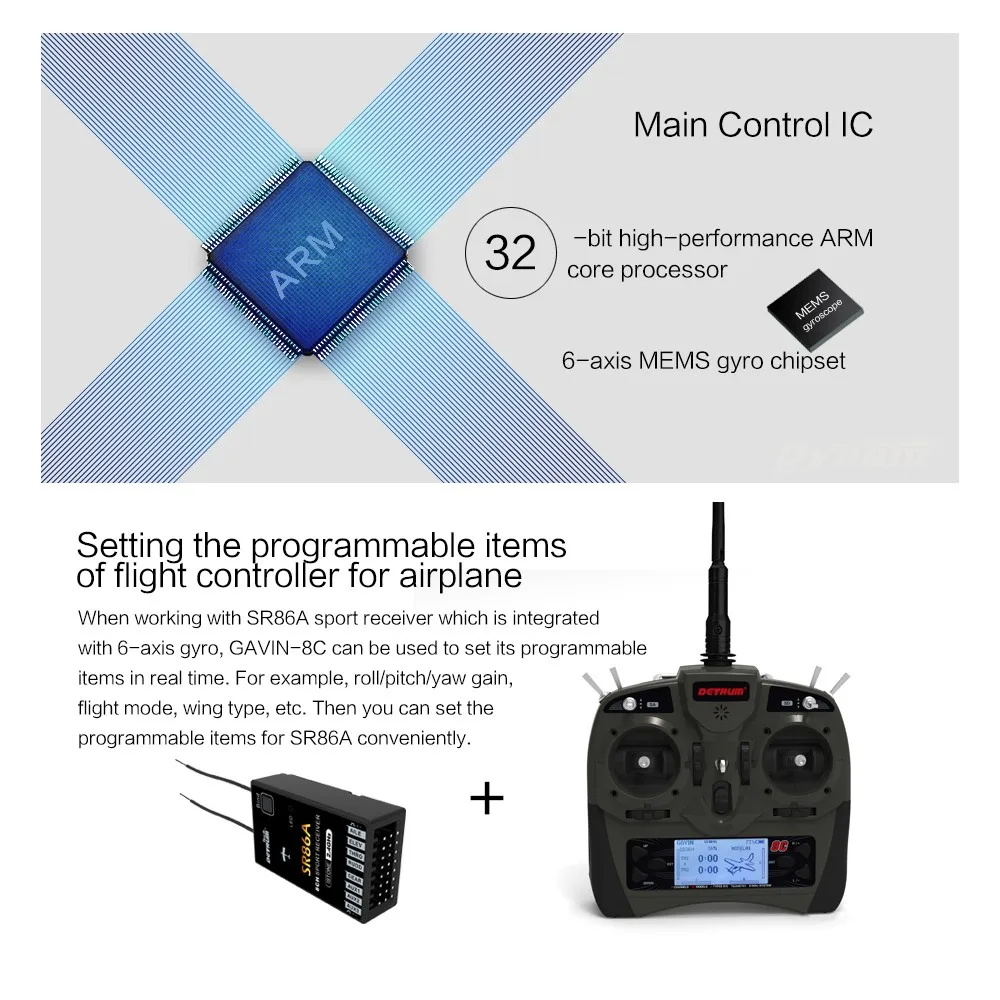

Adopt 32-bit high-performance ARM core processor, 6-axis MEMS gyro chipset
Original airplane attitude stabilization algorithm and control algorithm, support normal wing, fly wing, V-tail airplanes and 3D planes

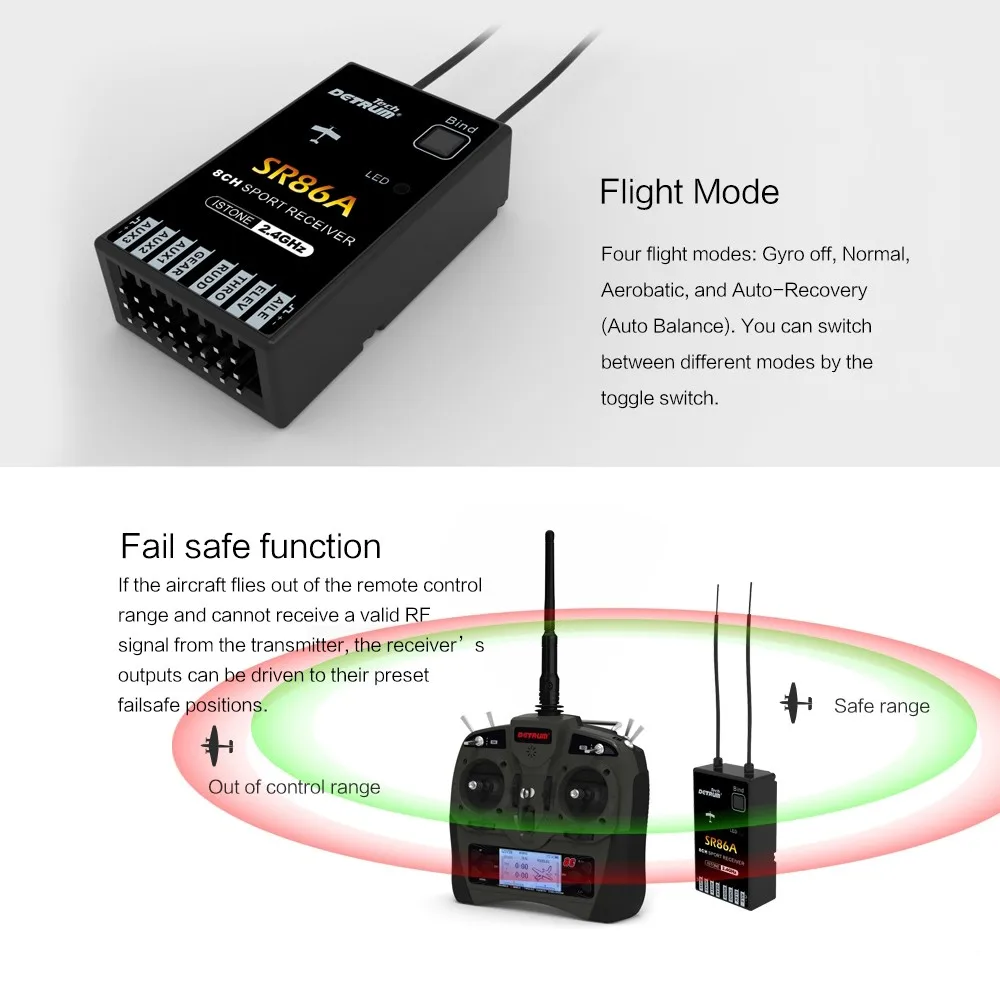

Support four flight modes: Gyro off, Normal, Aerobatic and Auto-Recovery (Auto Balance)
Set the gain and other programmable items with matched transmitter
Adopt 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies, having high receiving sensitivity and strong anti-interference
Diversity antenna, combined with the signal detection and switching algorithm, guarantees the stable and reliable receiving signal
Each ID code of transmitter can be stored in receiver and no further binding after restarting the receiver
The receiver will move the servos to predefined position when the aircraft flies out of range and cannot receive a valid RF signal from transmitter

Brand name: Detrum
Item name: Remote Controller and Receiver with Istone Stabalizer

Channel: 8-channel
Transmitting frequency: 2.4GHz
Power supply: 4 * 1.5V AA batteries
Consuming current: less than or equal to 120mA (test mode)
            less than or equal to 230mA (operating mode)
Output power: 10mW (test mode); 100mW (operating mode).
Output pulse: 1000ms~2000ms (neutral 1500ms)
Size: 270 * 190 * 110mm
Weight: 605g

SR86A sport receiver
Channel: 8-channel
Sensor: 6-axis gyro
Sensitivity: -97dBm
Output: PWM (71Hz)
Transmission Range: more than 1km on the ground, more than 1.6km in the air
Input Voltage: 3.6V~16V
Size: 51 * 28 * 15mm
Weight: 15g

Package Information:
Package size: 32.5 * 24.2 * 15cm / 12.8 * 9.6 * 5.9in
Package weight: 1089g / 2.4lb

Package List:

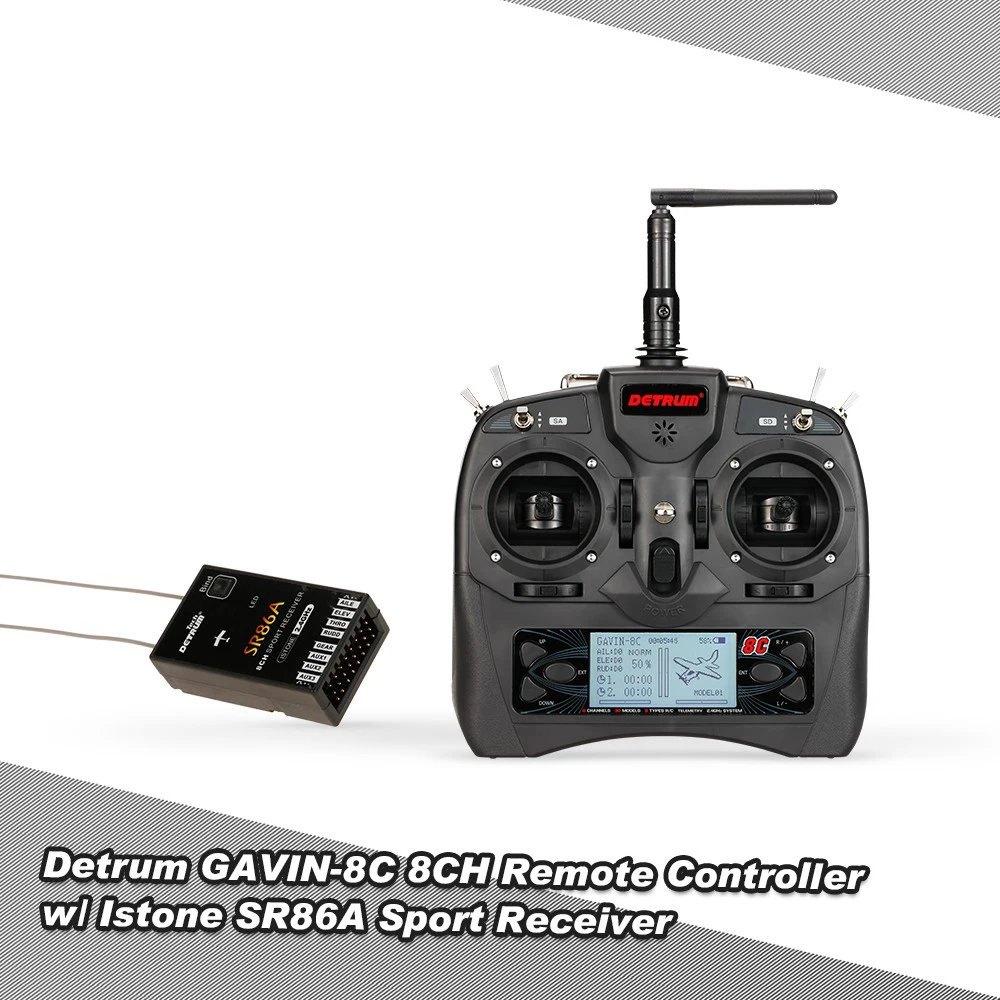

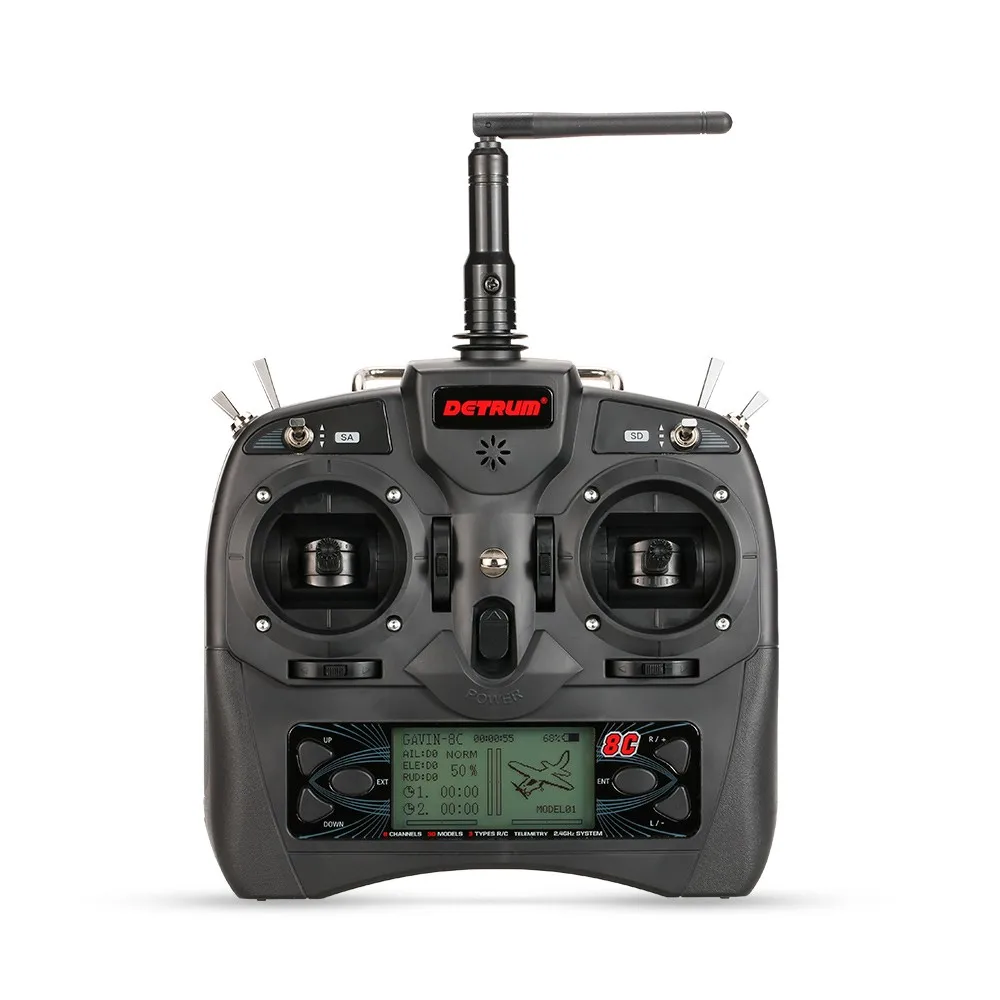

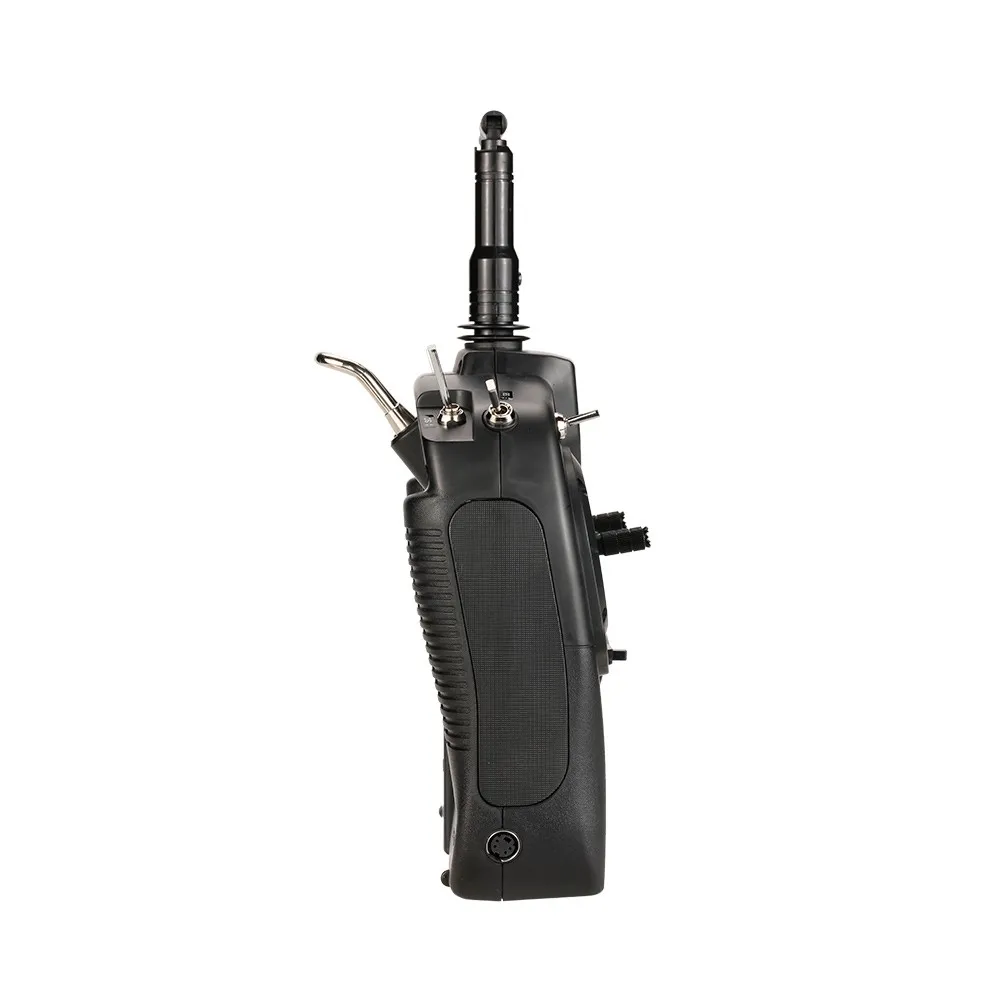

1 * 1068C1 Remote Controller
1 * Istone SR86A Sport Receiver with Istone Stabalizer
1 * English Manual
